DZ9114160031 离合器盖

济南向前汽车配件有限公司供应DZ9114160031 离合器盖【DZ9114160031】,价格1600.00元/件,下面是详细参数及照片。

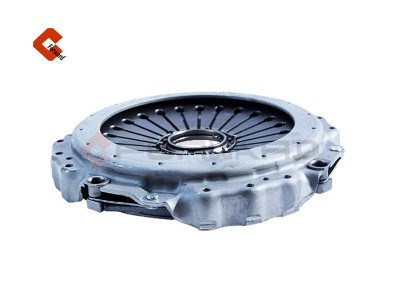

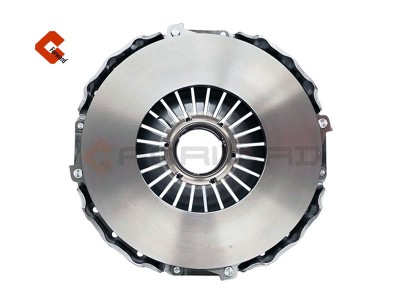

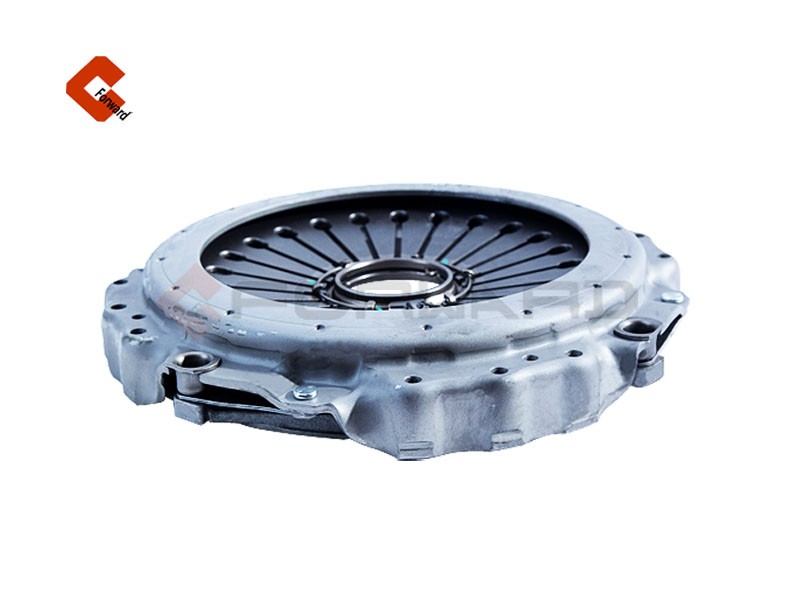

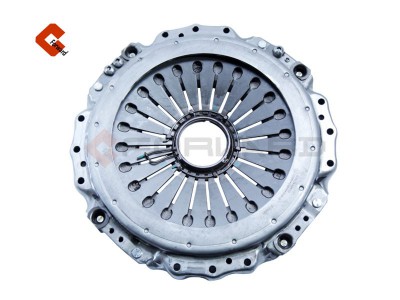

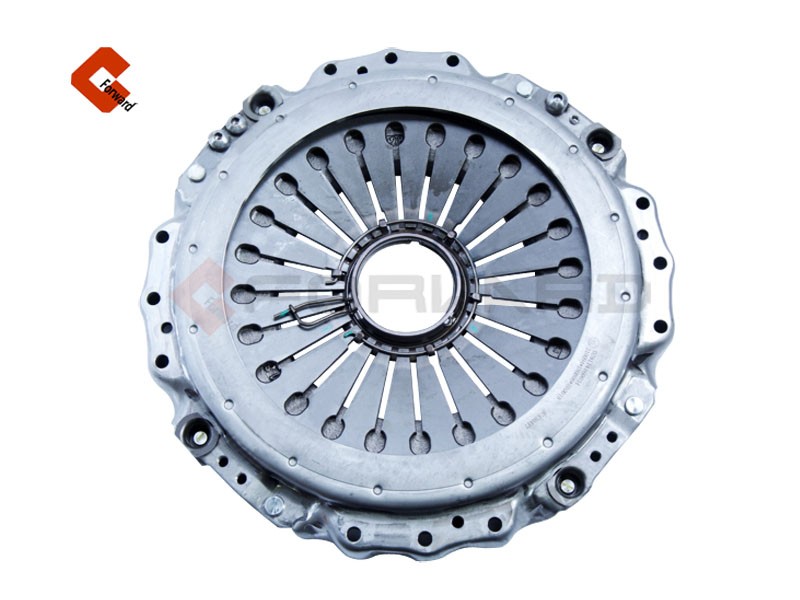

DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司
DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司

产品: Pull the pressure plate
图号:

DZ9114160031

车型: SHACMAN
品牌: Forward
Apply to: ISM440、WP12.430
Size: 430mm
Weight: 36.5kg
单价: 1600.00元/件
所在地: 山东 济南市 山东济南泉利重配城
有效期至: 长期有效
最后更新: 2025-04-23 16:11
浏览次数: 457
从恒科汽配网上联系我们

公司基本资料信息
详细说明
服务条款 豪沃发动机总成
DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司 DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司 DZ9114160031,Pull the pressure plate,济南向前汽车配件有限公司
 The role of the clutch pressure plate and the driven plate is to transfer the power of the engine to the gearbox when the two are combined, that is, to transfer the power.
Friction plate is also called clutch plate, because in the clutch, through friction clutch and combination or clutch, is an important part of the clutch.
The clutch has three important functions: to transfer power; Power cut off; Prevent overload.
The clutch pressure plate is installed on the flywheel of the engine and rotates with the engine; The driven disc (that is, the friction plate) is combined with the spline of the input shaft of the gearbox through the spline groove.
When the friction plate rotates, the input shaft of the gearbox rotates accordingly. When the pressure plate under the action of the spring, the pressure on the driven plate, the transmission power;
When the pressure plate is under the clutch pedal, the pressure plate is back, and the driven plate has no force, that is, the separation state; If you step on the clutch lightly,
the spring of the pressure plate does not fully function, this is the semi-clutch, also called the semi-linkage.
离合器结构图

430mm Diaphragm pull/28350N/2541Nm/EATON
