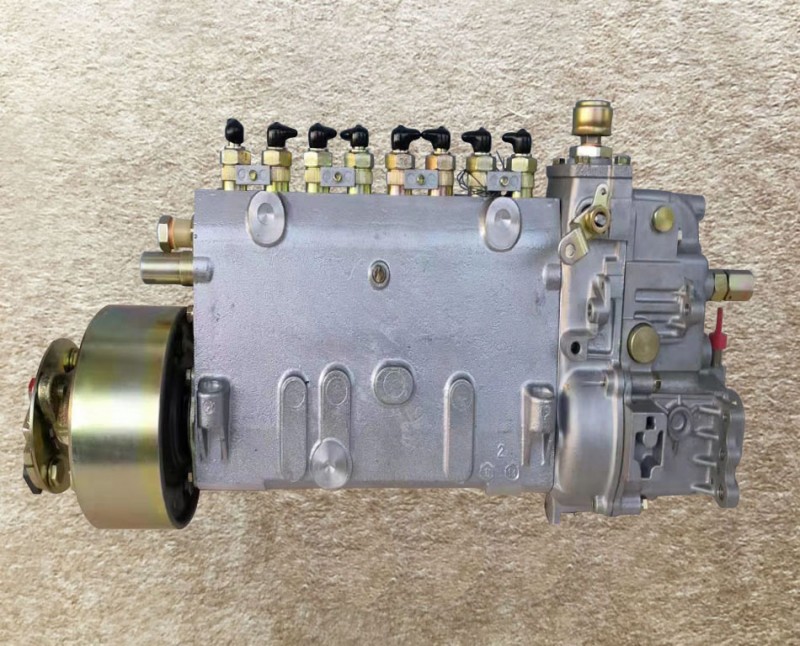

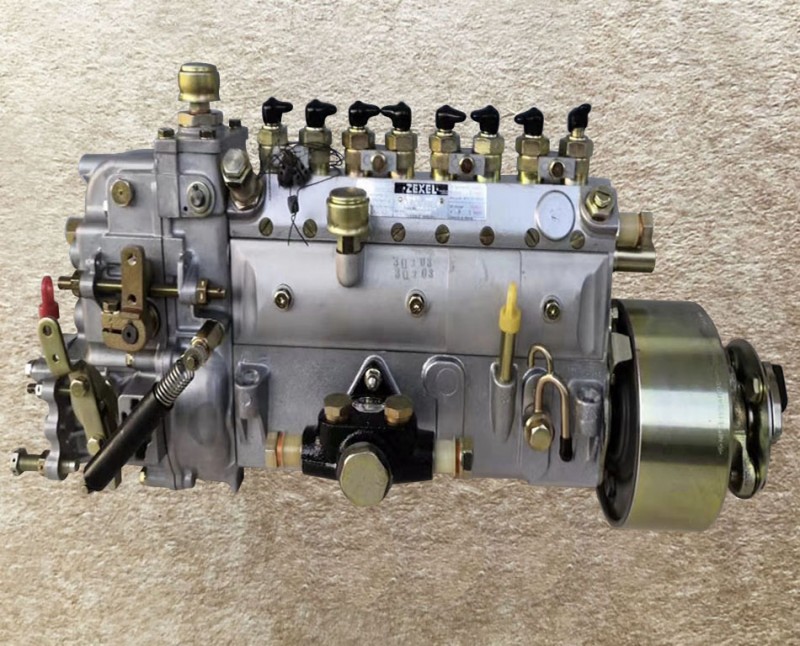

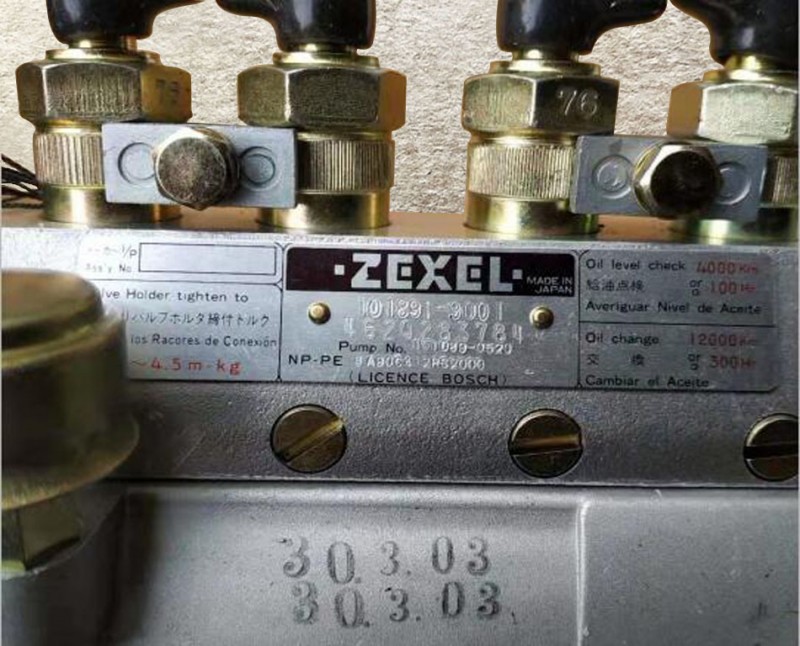

101089-0520 喷油泵

济南向前汽车配件有限公司供应101089-0520 喷油泵【Fuel injection pump】,价格面议,下面是详细参数及照片。
点击图片查看原图

产品: 101089-0520
图号:

Fuel injection pump

车型: 三菱 8DC2 8DC4 8DC7
品牌: Forward
brand: BOSCH
单价: 面议
所在地: 山东 济南市
有效期至: 长期有效
最后更新: 2019-10-09 20:48
浏览次数: 6
询价 从恒科汽配网上联系我们

公司基本资料信息
详细说明
Fuel injection pumpForward Fuel injection pumpForward Fuel injection pumpForward


1. [1] 131080-0520 PUMP HOUSING

1/30. [3] 029040-6020 STUD

1/35A. [1] 131400-0100 ADAPTOR

1/40. [1] 131002-2000 ADAPTOR

1/40A. [1] 131420-0420 BLEEDER SCREW

2. [1] 131013-7920 COVER

2/2. [1] 131011-1300 GASKET

3. [3] 131017-1000 FLAT-HEAD SCREW

5. [3] 029340-6020 GASKET D10&6.5T1.00

15. [1] 131030-2020 LEVEL INDICATOR

16. [8] 131034-1401 CAPSULE

21. [3] 139206-0400 UNIOn NUT

23. [1] 029633-1010 O-RING

30. [8] 131152-7120 PLUNGER-AND-BARREL ASSY

36. [8] 131110-4320 DELIVERY-VALVE ASSEMBLY

37. [8] 131112-2300 COILED SPRING

40. [8] 131115-1600 GASKET

41. [8] 131116-7600 FITTING

42. [8] 131117-2300 FILLER PIECE

45. [4] 131122-0520 PLATE

49. [8] 029632-0030 O-RING

55. [8] 131200-0220 TAPPET

55/2. [1] 131203-0200 BEARING PIN

55/3. [1] 131204-1000 ROLLER

55/4. [1] 131205-0500 BUSHING

55/5. [1] 131206-0200 SLIDER

56/1. [0] 029311-0020 SHIM D19&10T0.30

56/1. [0] 029311-0030 SHIM D19&10T0.40

56/1. [0] 029311-0040 SHIM D19&10T0.50

56/1. [0] 029311-0050 SHIM D19&10T0.6

56/1. [0] 029311-0060 SHIM D19&10T0.7

56/1. [0] 029311-0070 SHIM D19&10T0.8

56/1. [0] 029311-0080 SHIM D19&10T0.9

56/1. [0] 029311-0090 SHIM D19&10T1

56/1. [0] 029311-0110 SHIM D19&10T1.1

56/1. [0] 029311-0120 SHIM D19&10T1.2

56/1. [0] 029311-0130 SHIM D19&10T1.3

56/1. [0] 029311-0140 SHIM D19&10T1.4

56/1. [0] 029311-0270 SHIM D19&10T0.55

56/1. [0] 029311-0280 SHIM D19&10T0.65

56/1. [0] 029311-0290 SHIM D19&10T0.75

56/1. [0] 029311-0310 SHIM D19&10T0.85

56/1. [0] 029311-0320 SHIM D19&10T0.95

56/1. [0] 029311-0330 SHIM D19&10T1.05

56/1. [0] 029311-0340 SHIM D19&10T1.15

56/1. [0] 029311-0350 SHIM D19&10T1.25

56/1. [0] 029311-0490 SHIM D19&10T1.5

56/1. [0] 029311-0500 SHIM D19&10T1.6

56/1. [0] 029311-0580 SHIM D19&10T0.2

56/1. [0] 029311-0590 SHIM D19&10T0.25

56/1. [0] 029311-0600 SHIM D19&10T0.35

56/1. [0] 029311-0610 SHIM D19&10T0.45

56/1. [0] 029311-0620 SHIM D19&10T1.35

56/1. [0] 029311-0630 SHIM D19&10T1.45

56/1. [0] 029311-0710 SHIM D19&10T1.55

61. [8] 131215-1200 COMPRESSION SPRING

62. [8] 131216-0100 SLOTTED WASHER

63. [8] 131217-0200 SLOTTED WASHER

67. [1] 131258-0000 ConTROL RACK

68. [1] 131226-0300 FLAT-HEAD SCREW

76. [8] 131240-0100 PINION

77. [8] 131241-0100 ConTROL SLEEVE

78. [8] 131242-0100 FLAT-HEAD SCREW

90. [1] 131380-0200 CAMSHAFT

91A. [1] 016640-2030 BEARING PLATE

91B. [1] 028202-0020 BEARING PLATE

91E. [1] 016630-2030 BEARING PLATE

91F. [1] 028201-7020 BEARING PLATE

92. [1] 131302-0300 SPACER RING

92A. [1] 131302-1301 SPACER RING

93/1. [0] 029311-7010 SHIM D22&17T0.1

93/1. [0] 029311-7020 SHIM D22&17T0.12

93/1. [0] 029311-7030 SHIM D22&17T0.14

93/1. [0] 029311-7040 SHIM D22&17T0.16

93/1. [0] 029311-7050 SHIM D22&17T0.18

93/1. [0] 029311-7060 SHIM D22&17T0.5

93/1. [0] 029311-7070 SHIM D22&17T1.0

93/1. [0] 029311-7090 SHIM D22&17T0.3

93/1. [0] 029311-7210 SHIM D22&17T0.7

93/1. [0] 029311-7220 SHIM D22&17T1.4

93/1. [0] 139417-0000 SHIM D22&17T2.4

93A/1. [0] 029312-0310 SHIM D24&20T0.10

93A/1. [0] 029312-0320 SHIM D24&20T0.12

93A/1. [0] 029312-0330 SHIM D24&20T0.14

93A/1. [0] 029312-0340 SHIM D24&20T0.16

93A/1. [0] 029312-0350 SHIM D24&20T0.18

93A/1. [0] 029312-0360 SHIM D24&20T0.3

93A/1. [0] 029312-0370 SHIM D24&20T0.5

93A/1. [0] 029312-0380 SHIM D24&20T1.0

95. [1] 131306-0800 BEARING SHELL

96. [2] 029050-5010 FLAT-HEAD SCREW M5P0.8L32

97. [2] 026505-0940 GASKET

100. [1] 029621-7020 PACKING RING

100A. [1] 029622-0190 PACKING RING

101A. [1] 131316-2000 COVER

104A. [4] 020006-1440 BLEEDER SCREW M6P1L14

106A. [1] 029635-0050 O-RING

112A. [1] 029470-4030 WOODRUFF KEY

117A. [1] 029731-4680 EYE BOLT

118A. [2] 026514-1840 GASKET D17.9&14.2T1

121. [1] 029111-0010 CAPSULE

122. [1] 029341-0020 GASKET

131. [1] 131424-1520 OVER FLOW VALVE

133. [2] 026514-1840 GASKET D17.9&14.2T1

145. [1] 155406-0220 AIR FILTER

152. [1] 029731-0170 EYE BOLT

153. [1] 131431-5820 PIPE

154. [2] 026510-1340 GASKET D13.4&10.2T1

360A. [1] 131496-1000 POINTER

361A. [2] 029010-6680 BLEEDER SCREW
