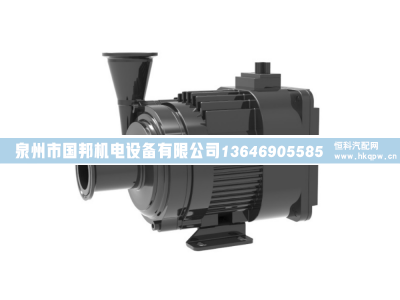

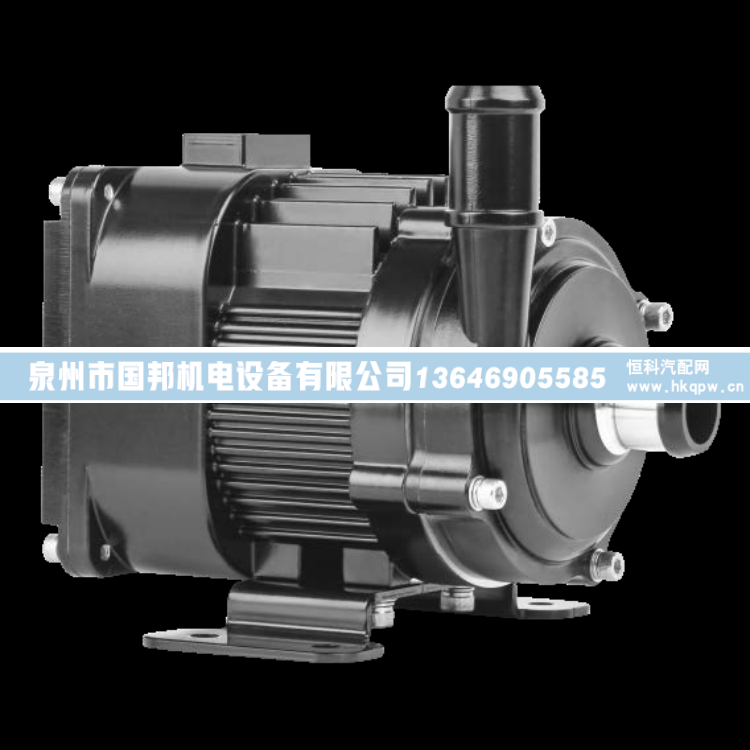

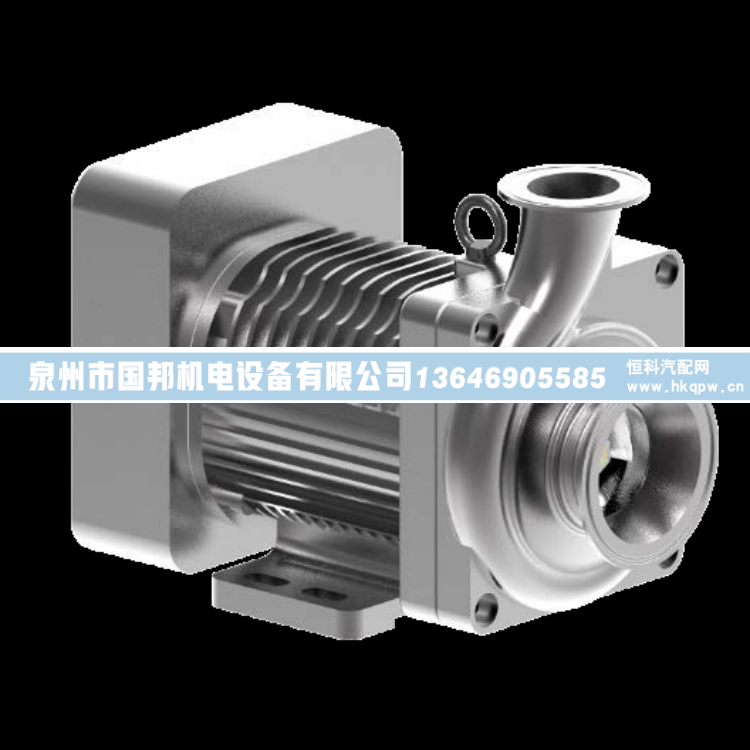

EC水泵由高性能流体动力学叶轮、高效永磁同步电机、驱动控制器三部分组成，适用性广，通用程度高。具备高转速、结构紧凑、低噪音同时拥有长寿命和高可靠性；广泛应用于储能、充电桩、液冷系统、数据中心等场景。安装方式极为灵活，在狭小空间中仍能提供高效冷却，再加上与设备系统交互集成的能力，使其成为现代自动化领域中不可或缺的一部分；并以系统高效节能技术助力“碳达峰”和“碳中和”，创造更大的社会效益，顺应科技发展的趋势。
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
220V |
|
电压范围（VAC）Voltage range |
175-275V |
|
额定电流（A）Rated current |
1.5 |
|
额定功率（W）Rated power |
200 |
|
转速（rpm）Rotational speed |
4600 |
|
额定流量（L/min）Rated Flow |
50 |
|
额定扬程（m）Rated Head |
12 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—85℃ |
|
防护等级Protection Level |
IP68 |
|
运行相对湿度Operating relative humidity |
＜90%RH |
|
重量（kg）Weight |
3.2 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
220V |
|
电压范围（VAC）Voltage range |
175-275V |
|
额定电流（A）Rated current |
2.2 |
|
额定功率（W）Rated power |
300 |
|
转速（rpm）Rotational speed |
5000 |
|
额定流量（L/min）Rated Flow |
60 |
|
额定扬程（m）Rated Head |
17 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—85℃ |
|
防护等级Protection Level |
IP68 |
|
运行相对湿度Operating relative humidity |
＜90%RH |
|
重量（kg）Weight |
3.2 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
220V |
|
电压范围（VAC）Voltage range |
175-275V |
|
额定电流（A）Rated current |
2.9 |
|
额定功率（W）Rated power |
400 |
|
转速（rpm）Rotational speed |
5400 |
|
额定流量（L/min）Rated Flow |
70 |
|
额定扬程（m）Rated Head |
18 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—85℃ |
|
防护等级Protection Level |
IP68 |
|
运行相对湿度Operating relative humidity |
＜90%RH |
|
重量（kg）Weight |
3.4 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
220V |
|
电压范围（VAC）Voltage range |
175-275V |
|
额定电流（A）Rated current |
3.4 |
|
额定功率（W）Rated power |
500 |
|
转速（rpm）Rotational speed |
5800 |
|
额定流量（L/min）Rated Flow |
75 |
|
额定扬程（m）Rated Head |
21 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—85℃ |
|
防护等级Protection Level |
IP68 |
|
运行相对湿度Operating relative humidity |
＜90%RH |
|
重量（kg）Weight |
3.5 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
220V |
|
电压范围（VAC）Voltage range |
175-275V |
|
额定电流（A）Rated current |
3.5 |
|
额定功率（W）Rated power |
600 |
|
转速（rpm）Rotational speed |
5900 |
|
额定流量（L/min）Rated Flow |
80 |
|
额定扬程（m）Rated Head |
22 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—85℃ |
|
防护等级Protection Level |
IP68 |
|
运行相对湿度Operating relative humidity |
＜90%RH |
|
重量（kg）Weight |
3.6 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
380V |
|
电压范围（VAC）Voltage range |
275-420V |
|
额定电流（A）Rated current |
9.5 |
|
额定功率（KW）Rated power |
3 |
|
转速（rpm）Rotational speed |
4000 |
|
额定流量（L/min）Rated Flow |
333.3 |
|
额定扬程（m）Rated Head |
30 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—70℃ |
|
防护等级Protection Level |
IP67 |
|
运行相对湿度Operating relative humidity |
＜95%RH |
|
重量（kg）Weight |
7.93 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
380V |
|
电压范围（VAC）Voltage range |
275-420V |
|
额定电流（A）Rated current |
13 |
|
额定功率（KW）Rated power |
4 |
|
转速（rpm）Rotational speed |
4200 |
|
额定流量（L/min）Rated Flow |
416.7 |
|
额定扬程（m）Rated Head |
30 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—70℃ |
|
防护等级Protection Level |
IP67 |
|
运行相对湿度Operating relative humidity |
＜95%RH |
|
重量（kg）Weight |
8.32 |
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
380V |
|
电压范围（VAC）Voltage range |
275-420V |
|
额定电流（A）Rated current |
17.5 |
|
额定功率（KW）Rated power |
5.5 |
|
转速（rpm）Rotational speed |
4350 |
|
额定流量（L/min）Rated Flow |
500 |
|
额定扬程（m）Rated Head |
30 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—70℃ |
|
防护等级Protection Level |
IP67 |
|
运行相对湿度Operating relative humidity |
＜95%RH |
|
重量（kg）Weight |
15.5
|
|
技术参数Technical Specifications |
|
|
额定电压（VAC）Rated Voltage |
380V |
|
电压范围（VAC）Voltage range |
275-420V |
|
额定电流（A）Rated current |
23.5 |
|
额定功率（KW）Rated power |
7.5 |
|
转速（rpm）Rotational speed |
4500 |
|
额定流量（L/min）Rated Flow |
733.35 |
|
额定扬程（m）Rated Head |
30 |
|
工作介质Working medium |
50%乙二醇 |
|
使用环境温度（℃）Operating temperature |
-40℃—70℃ |
|
防护等级Protection Level |
IP67 |
|
运行相对湿度Operating relative humidity |
＜95%RH |
|
重量（kg）Weight |
15.9 |
