The semi-high roof cab is hydraulically locked and remounted

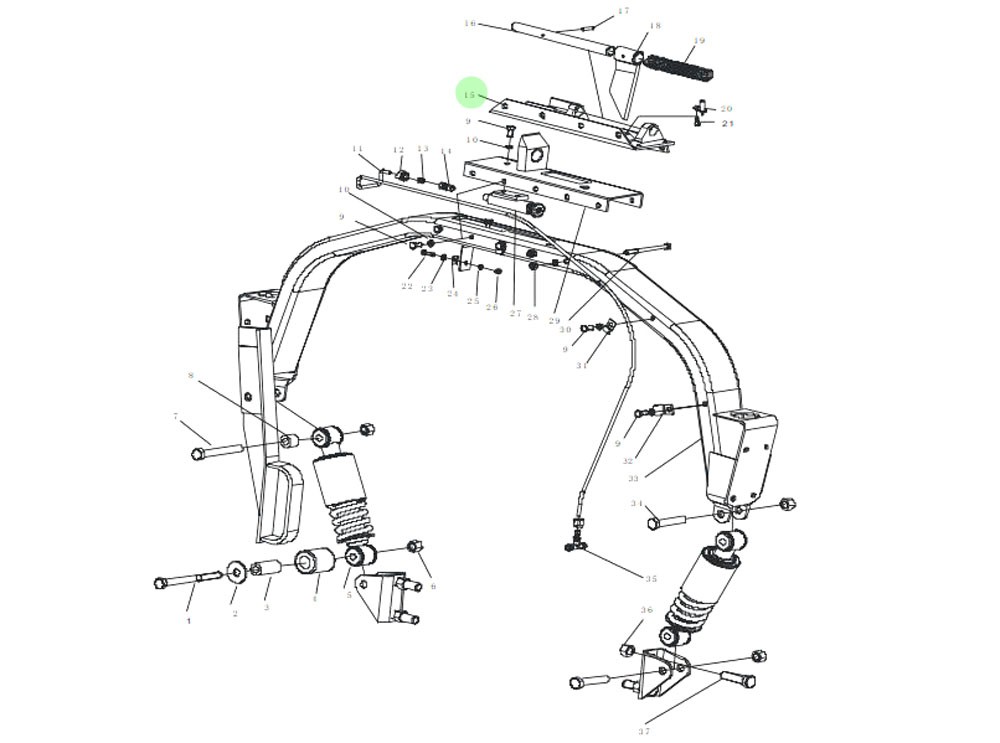

DZ1672440002 驾驶室液压锁止后悬置安装图（半高顶）

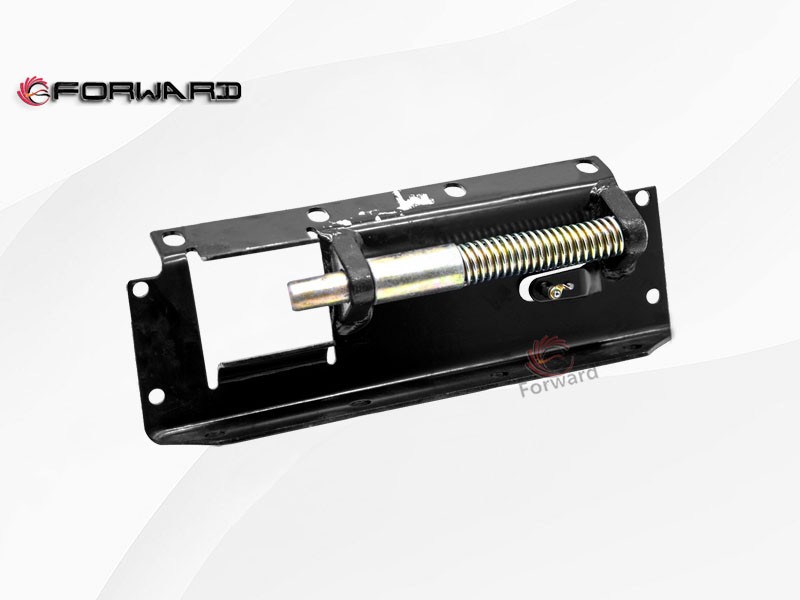

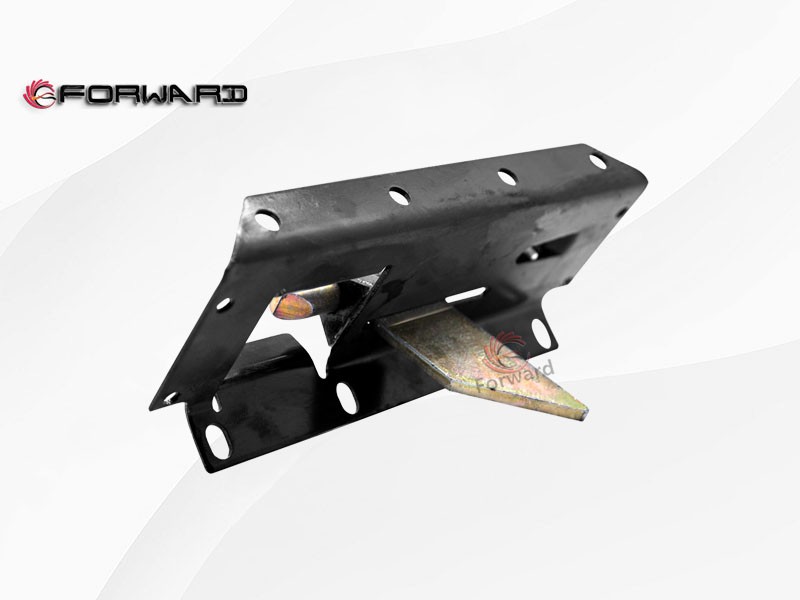

DZ1600440064 锁紧机构总成 Locking mechanism assembly
DZ1672440202 半高顶驾驶室液压锁止分装总成 Hydraulic locking assembly for semi-high roof cab
DZ1672440120 驾驶室固定横梁总成（半高顶）Cab fixed crossbeam assembly (semi-high roof)
116100440072 托架总成 Bracket assembly
DZ1600440011 驾驶室固定横梁 Fixed crossbeam of the cab
199000190034 压板 Pressure plate
DZ1672440075 右托架总成 Right bracket assembly
DZ1600440070 固定座总成 Fixed seat assembly
DZ1600440065 柱塞缸 Plunger cylinder
Q40008 小垫圈 Gasket
Q150B0812 六角头螺栓（镀锌）Hexagonal head bolts (galvanized)
DZ1600440012 推板 Push plate
Q2540610 十字槽沉头螺钉 Cross-groove countersunk screw
Q150B0816 六角头螺栓 Hexagonal head bolt
Q150B08100 六角头螺栓 Hexagonal head bolt
Q40308 弹簧垫圈 Spring washer
Q340B08 1型六角螺母 Type 1 hexagonal nut
Q150B0855 六角头螺栓 Hexagonal head bolt
Q340B08 1型六角螺母 Type 1 hexagonal nut
190003559482 卡套式三通管接头 Ferrule type three-way pipe fitting
190003559516 管接头用螺母 Nuts for pipe joints
190003559561 卡套 Card holder
190003559462 卡套式直通接头体 Ferrule type straight-through joint body
DZ1600440023 输油管 Oil pipeline
DZ1600440026 管卡 pipe clamp
DZ9112821005 高压软管（一）High-pressure Hose (I)
DZ1600440024 管卡 pipe clamp
Q4008 小垫圈 Gasket
Q150B0816 六角头螺栓 Hexagonal head bolt
190003559516 管接头用螺母 Nuts for pipe joints
190003559561 卡套 Card holder
Q151B1470 六角头螺栓 Hexagonal head bolt
190003888458 自锁螺母 Self-locking nut
Q150B14130 六角头螺栓 Hexagonal head bolt
Q40214 大垫圈 Big gasket
116100440004 套筒 Sleeve
116100440005 套管 Drivepipe
DZ1600440002 减震器 Shock absorber
116100440006 套管 Sleeve
Q151B1490 六角头螺栓 Hexagonal head bolt
DZ1600440292 减震器托架 Shock absorber bracket
Q151C1235 六角头螺栓 Hexagonal head bolt
190003888468 自锁螺母 Self-locking nut
AZ1692440001 绳索 Rope
116029440078 绳索固定卡 Rope fixing clamp
Q150B0620 六角头螺栓 Hexagonal head bolt
Q40106 平垫圈 Flat washer
Q40306 弹簧垫圈 Spring washer
Q340B06 1型六角螺母 Type 1 hexagonal nut
DZ9100821001 输油管再加工图 Reprocessing diagram of oil pipelines
