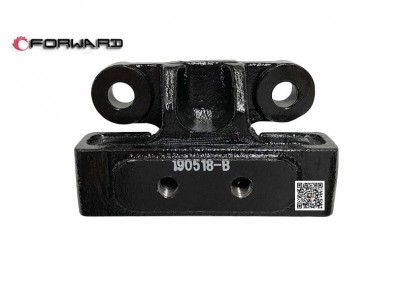

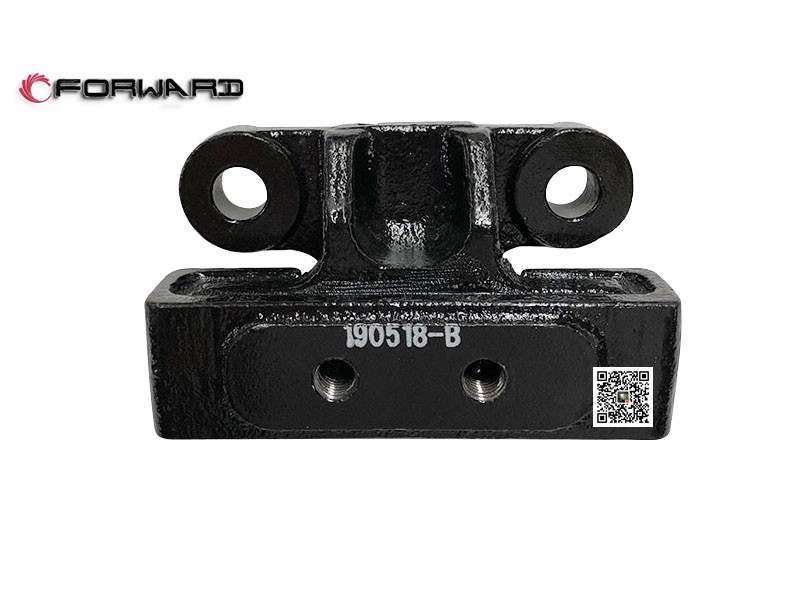

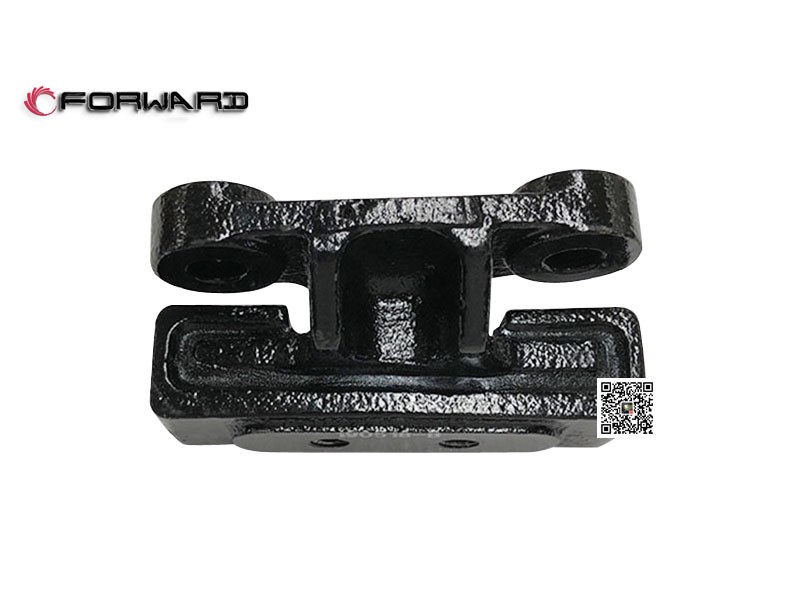

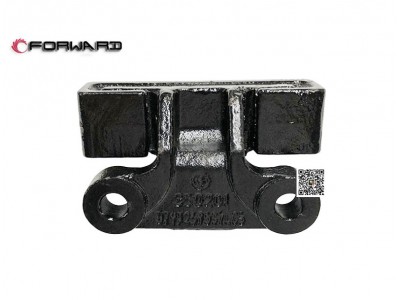

DZ9X259537005 冷却模块悬置（左）

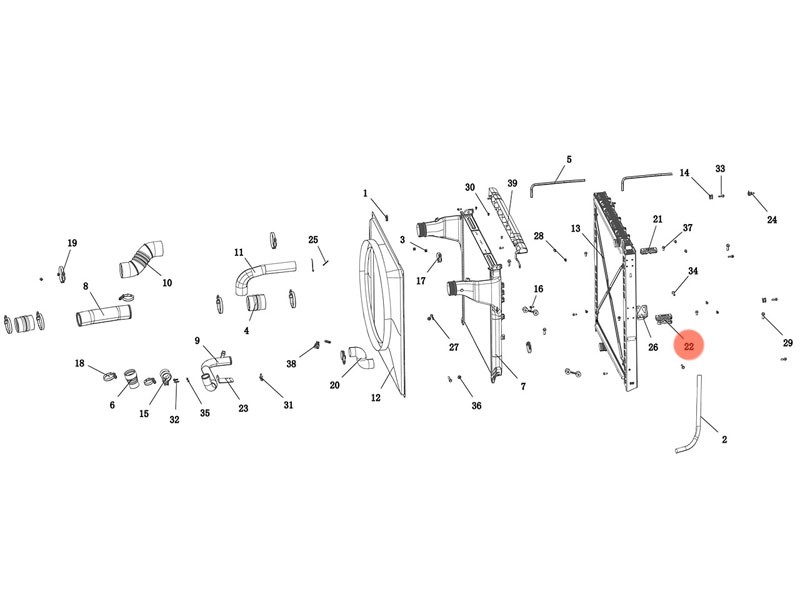

DC9X259530417 Cooling system /X6000/WP17NG/ Module 8 / Efficient intercooling /810 ring/Cab 950 positioning

1、190003989301 Worm driven hose hoop  2 pieces
2、116000840032 Rubber hose (with fiber interlayer)  1 piece
3、190003989300 Worm driven hose ring  4 piece
4、DZ93259535302 Inner fluorine outer silicone pipe  2 pieces
5、DZ95259535204 Rubber hose  2 pieces
6、DZ96149535045 Reducer hose (Φ60-Φ75)  1 piece
7、DZ97149531092 Intercooler assembly  1 piece
8、DZ97149534184 Intercooler inlet steel pipe  1 piece
9、DZ97149534186 Radiator outlet steel pipe assembly  1 piece
10、DZ97149535053 Air hose for intercooler  1 piece
11、DZ97149535054 Radiator water inlet hose  1 piece
12、DZ97149536047 Type C air shield  1 piece
13、DZ97259532210 Radiator assembly  1 piece
14、DZ9H259537105 Rubber pad  2 pieces
15、DZ9112530169 Pipe clamp  2 pieces
16、DZ9L149537005 Cooling module auxiliary suspension  2 pieces
17、DZ9L259538068 American heavy duty clamp (Φ68)  4 pieces
18、DZ9L259538081 American heavy duty clamp (Φ81)  2 pieces
19、DZ9L259538107 American heavy duty clamp (Φ107)  6 pieces
20、DZ9X259535019 Water bending hose  1 piece
21、DZ9X259537005 Cooling module suspension (left)  1 piece
22、DZ9X259537006 Cooling module suspension (right)  1 piece
23、DZ9X259538026 Fixed bracket  1 piece
24、DZ9X259538042 Quick plug connector (8) NW6-0  1 piece
25、DZ93189777161 Ordinary narrow cable tie  2 pieces
26、DZ9X259538062 Cooling module suspension bracket  2 pieces
27、Q1841060T1F3 Hexagon flange bolts  2 pieces
28、Q1840820T1F31 Hex flange bolts  14 pieces
29、Q1811235TF3 Hexagon flange face with teeth bolt - fine teeth  4 pieces
30、Q1840612T1F31 Hexagon flange bolts  3 pieces
31、Q1841025T1F31 Hexagon flange bolts  2 pieces
32、Q1840825T1F31 Hexagon flange bolts  2 pieces
33、Q1841030T1F31 Hexagon flange bolts  4 pieces
34、Q1841040T1F31 Hexagon flange bolts  2 pieces
35、Q33208T2F3 Type 2 All-metal hexagonal lock nuts  2 pieces
36、SXQ33010T2F3 all-metal hexagon flange locking nut  2 pieces
37、Q1841020T1F31 Hexagon flange bolts  4 pieces
38、DZ9X259538040 Quick plug connector (20) NW16-0  1 piece
39、DZ9H259536014 Heat stop reflux plate  1 piece
