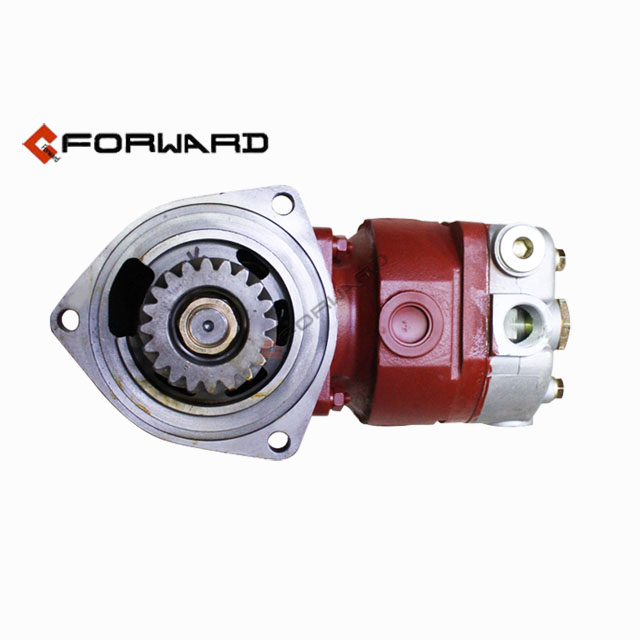

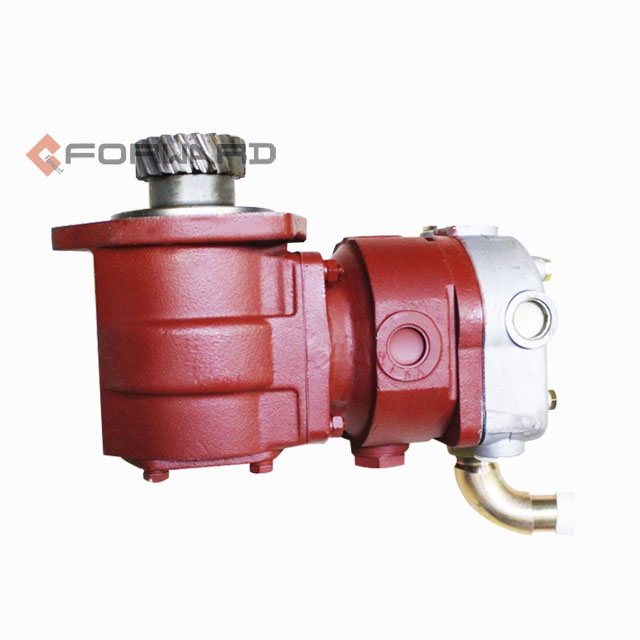

612600130775 空压机总成WP10

An air compressor is a device used to compress gases. Air compressors are similar in structure to water pumps. Most air compressors are reciprocating piston type, rotating blade or rotating screw. Centrifugal compressors are very large applications. Water pipe is used for cooling air compressor, suitable for normal temperature work.

1.612600130333   bolt

2.612600080246   gasket

3.612600130326   Air compressor lubricating oil pipe assembly

4.90003962627    Hollow bolt

5.13023361          Combination seal washer

6.612600130759  Air compressor water pipe assembly

7.612600080200  gasket

8.90003962621    Hollow bolt

9.90011430017S  Hexagon flange face socket with tooth bolt

10.90011430032  Hexagon flange face socket with tooth bolt

11.99100360161   joint

12.612600130355 Air compressor water pipe assembly

13.612600130775 Air compressor Assembly

14.612600130037 gasket

15.612600130275 Pipe joint

16.30800010003   Sealing ring
